▌Technical parameter：

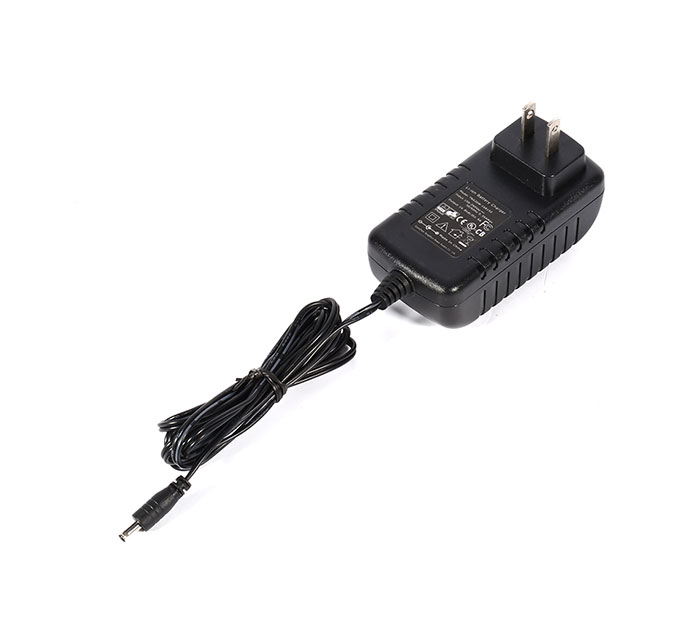

| 36W wall mount adapter | |||
| Input | 100-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 5v5a; 7.5v4a; 9v3a; 10v3a; 12v3a; 15v2a; 18v2a; 19v1.7a; 20v1.5a; 24v1.5a; 36v1a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Output connector | 5.5*2.1;5.5*2.5;3.5*1.35;4.4*1.7; 2.5*0.7;6.5*4.4;Micro USB; Mini USB;Type C;DIN | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <380mV | Efficiency | >84% |
| Load regulation | ±5% | Size & N.W | 93*46*31mm; 0.15kg |
| Hi-Pot | 3000Vac/60s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/UL/UKCA/GS/ETL/SAA/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 43*37*30cm;100pcs/ctn |
| Application | Small household appliances, Security products, Pet products, Massage machines, Beauty machines, 3D printers, Car refrigerators, Energy storage products, Air pumps etc. | ||
| 60W wall mount adapter | |||
| Input | 100-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 9v5a; 12v5a; 15v4a; 18v3a;19v3.14a; 20v3a; 24v2-2.5a; 36v1.5a; 48v1a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Output connector | 5.5*2.1;5.5*2.5;3.5*1.35;4.4*1.7; 2.5*0.7;6.5*4.4;Micro USB; Mini USB;Type C;DIN | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <500mV | Efficiency | >84% |
| Load regulation | ±5% | Size & N.W | 93*46*31mm; 0.19kg |
| Hi-Pot | 3000Vac/60s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/UL/UKCA/GS/ETL/SAA/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 43*37*30cm;100pcs/ctn |
| Application | Small household appliances, Security products, Pet products, Massage machines, Beauty machines, 3D printers, Car refrigerators, Energy storage products, Air pumps etc. | ||
