▌Technical parameter：

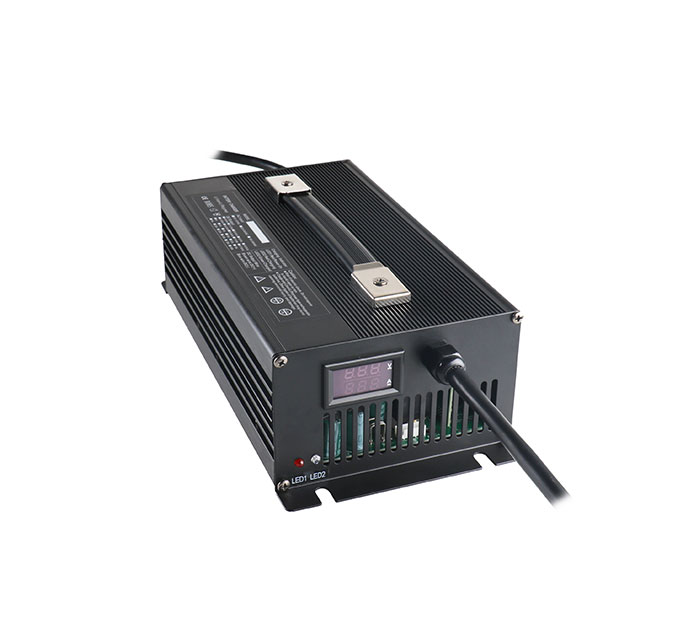

| 1200W desktop type lead acid battery charger | |||
| Input | 90-120V/180-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 12v40a; 24v30a; 36v25a; 48v20a; 60v15a; 72v12a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Charge mode | CC-CV-Float Mode | Led indicator | Red---on charging Green---fully charged |
| Output connector | DC,alligator clips, XLR,RCA,Anderson plug, XT60,XT90,Housing plug etc. | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <850mV | Efficiency | >85% |
| Load regulation | ±5% | Size & N.W | 220*120*70mm;2.5kg |
| Hi-Pot | 1500Vac/10s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 67*24*45mm;6kgs/ctn;14.5kgs/ctn |
| Application | Lead Acid battery charger,functional stability, widely used in electric vehicles,electric wheelchairs,forklift,solar system and other products | ||
| 1500W desktop type lead acid battery charger | |||
| Input | 90-120V/180-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 12v50a; 24v40a; 36v30a; 48v25a; 60v20a; 72v16a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Charge mode | CC-CV-Float Mode | Led indicator | Red---on charging Green---fully charged |
| Output connector | DC,alligator clips, XLR,RCA,Anderson plug, XT60,XT90,Housing plug etc. | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <850mV | Efficiency | >85% |
| Load regulation | ±5% | Size & N.W | 260*158*92mm; 4.20kg |
| Hi-Pot | 1500Vac/10s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 59*44*34cm;6pcs/ctn;26kgs/ctn |
| Application | Lead Acid battery charger,functional stability, widely used in electric vehicles,electric wheelchairs,forklift,solar system and other products | ||
▌Product video：
|
Last:600W / 900W desktop type lead acid battery charger
Next:2000W/3000W desktop type lead acid battery charger |
