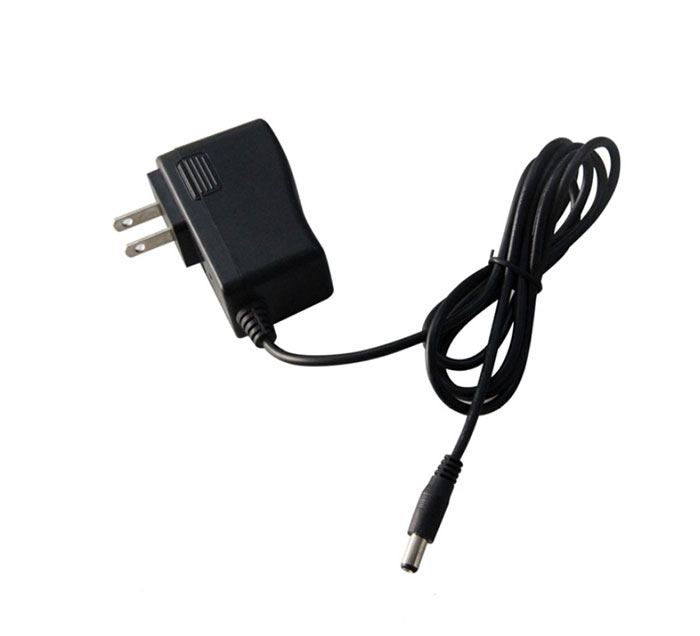

15W wall mount NI-MH battery charger

Input

100-240Vac 50/60Hz

Input plug

EU US UK AUS JP Korea  Plugs

Rated Output

3s 3.6v/4.5v 500-1000mA；4s 4.8v/6.0v 500-1000mA；5s 6v/7.5v 500-1000mA；6s 7.2v/9v 500-1000mA；

7s 8.4v/10.5v 500-1000mA；8s 9.6v/12v 500-1000mA；9s 10.8v/13.5v 500-1000mA；10s 12v/15v 500-1000mA

Charge mode

CC--CV

Standard Charge volt

NI-MH BATTERY VOLTAGE : 1.2Vdc/cell, CHARGING VOLTAGE: 1.4-1.5V/cell;

Led Indicator

LED Display: Red--In Charging; Green--fully Charged;

Safety Protection

Over-current, Over-voltage, Over-load, Short circuit, Reverse polarity

Suitable Battery

Interchangeale Ni-Mh/Ni-Cd battery--

Model cars/airplane,electronic air gun,cap-lamp,medical devices,electronic detector

Efficiency

>82%

Output connector

DC, Molex, Tamiya, JST Etc.

Size & Weight

73*28*42mm   0.1kg/pcs

Hi-Pot

2000Vac/10S

MTBF

30000hrs

OperateTemperature

-20℃~ +45℃

Storage Temperature

-40℃~ +85℃

Safe Certifiactes

CE FCC CB ETL SAA KC PSE

Lead time

Samples time: 3-5days

Order time: 15-18days

Warranty

2 Years

Package

43*37*30cm  100pcs/ctn  11.5kg/ctn
