▌Technical parameter：

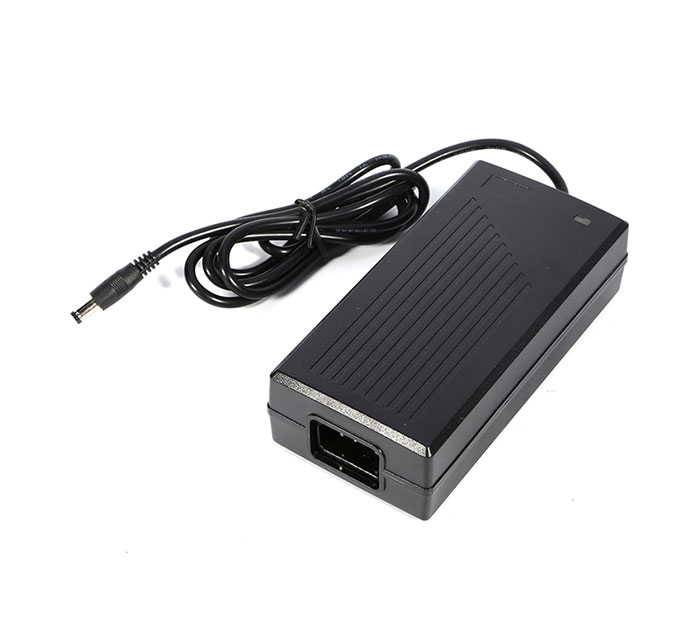

| 60W desktop type lead acid battery charger | |||
| Input | 100-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 6v4a; 12v3a; 24v2a;36v1.5a; 48v1a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Charge mode | CC-CV-Float Mode | Led indicator | Red---on charging Green---fully charged |
| Output connector | DC,alligator clips, XLR,RCA,Anderson plug, XT60,XT90,Housing plug etc. | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <600mV | Efficiency | >85% |
| Load regulation | ±5% | Size & N.W | 119*61*35mm;0.32kg |
| Hi-Pot | 1500Vac/10s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/UKCA/CB/ETL/SAA/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 43*37*30cm;50pcs/ctn |
| Application | Lead Acid battery charger,functional stability, widely used in electric vehicles,electric wheelchairs,forklift,solar system and other products | ||
| 90W desktop type lead acid battery charger | |||
| Input | 100-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 12v4a; 24v3a; 36v2a; 48v1.5a; 60v1a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customerized |
| Charge mode | CC-CV-Float Mode | Led indicator | Red---on charging Green---fully charged |
| Output connector | DC,alligator clips, XLR,RCA,Anderson plug, XT60,XT90,Housing plug etc. | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <680mV | Efficiency | >85% |
| Load regulation | ±5% | Size & N.W | 136*66*37mm;0.40kg |
| Hi-Pot | 1500Vac/10s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/UKCA/CB/ETL/SAA/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 43*37*30cm;50pcs/ctn |
| Application | Lead Acid battery charger,functional stability, widely used in electric vehicles,electric wheelchairs,forklift,solar system and other products | ||
